RGC

ER75P / Inward Opening

Color：
Size Options：
Inquiry Now
Image gallery marquee
Image gallery marquee
Image gallery marquee
Image gallery marquee
Image gallery marquee
Image gallery marquee

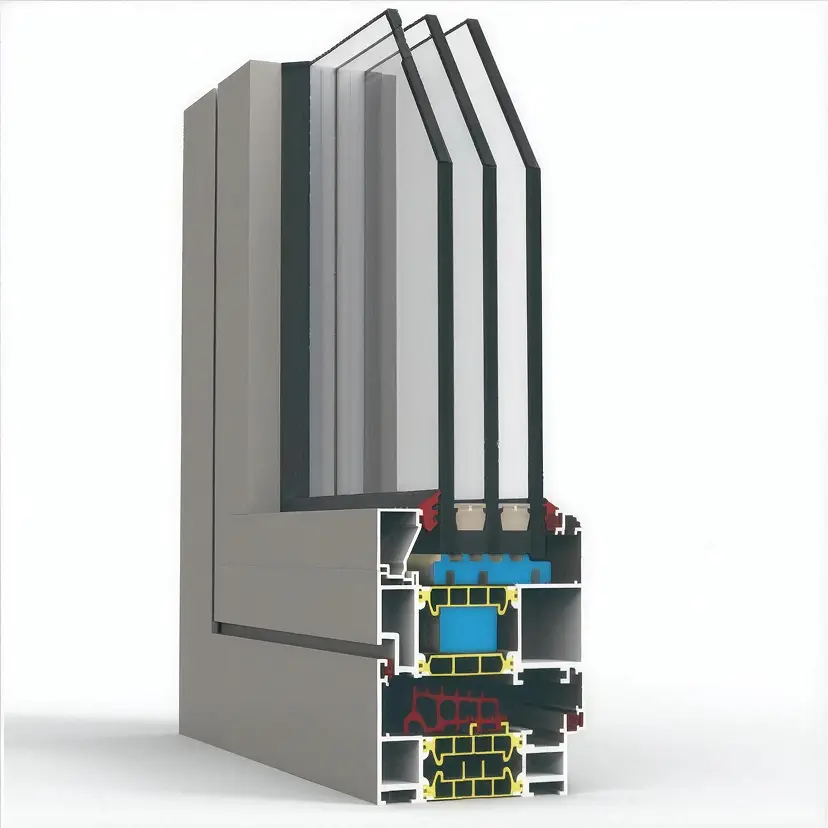

  • Large size 39mm thermal insulation structure
  • It fully conforms to the isotherm design theory, and the overlapping area of the intermediate insulation zone reaches more than 90% to prevent heat loss
  • The sealant strip adopts the thread clamping process with fiberAt the same time, semi foaming composite materials are used
  • The whole series of closed glass beading configuration improves the wind pressure resistance of the product to prevent glass beading deformation and glass falling off
  • The maximum glass width reaches 58mm, which can meet the configuration requirements of super large layout reinforced glass and super heat insulation energy-saving glass
  • Simple mechanical lock and multi-point mechanical lock, two options

TECHNICAL DATA

(The dimensions of test pieces 1500x1500mm) ER75P Outward Opening ER75P Outward Opening ER75P Outward Opening
AIR PERMEABILITY EN CLASS 4 CLASS 4 CLASS 4
WATER TIGHTNESS EN class E1500 class E1500 class E1500
THERMALTRASMITTANCE Wm²K Uw ≦1.2 Uw ≦1.4 Uw ≦1.9
WIND LOAD RESISTANCE EN class C5 class C5 class C5
SOUND INSULATION EN 4 4 4

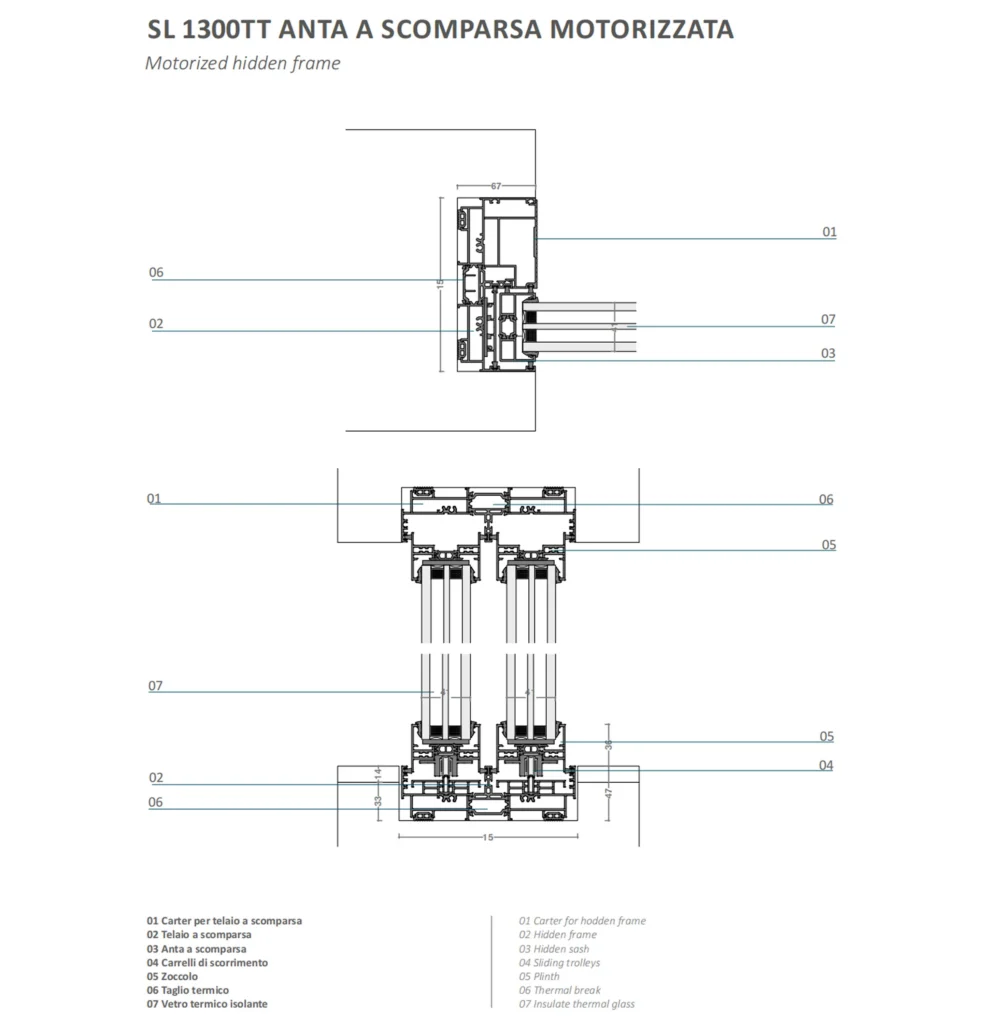

CONCEALED SYSTEM DETAILS

CONCEALED SYSTEM DETAILS

The SL1300TT hidden-frame section reveals a highly integrated motorized sliding structure. Concealed profiles, thermal-break components and insulated glass are engineered together to create a clean architectural opening with minimal visual interruption.

  • HIDDEN FRAME CONSTRUCTION
  • INTEGRATED MOTOR DRIVE
  • FLUSH TRACK SOLUTION
  • THERMAL BREAK DESIGN
  • LARGE GLASS PANEL SUPPORT

Certification

ER 75P Intertek Test Report
